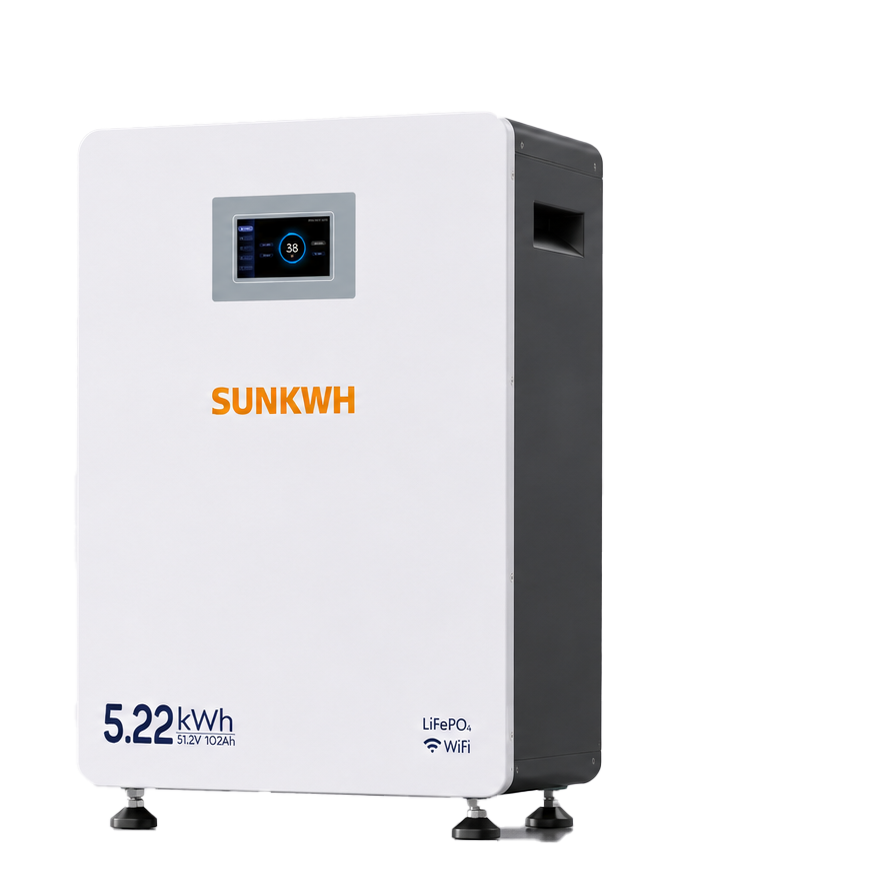

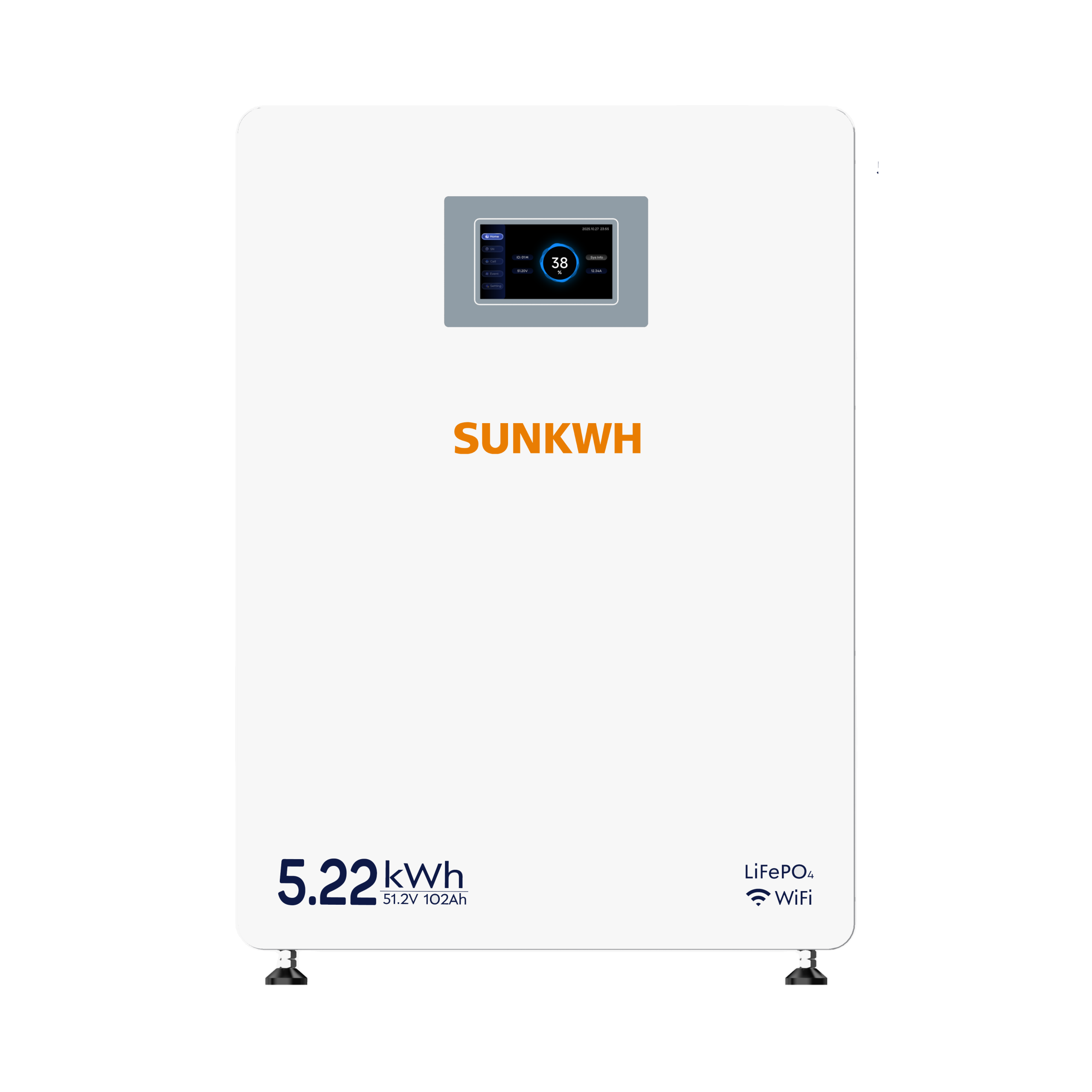

5.22kWh ESS
SAFE: Grade A LiFePO₄ Cell
RELIABLE: Compatible with Major PCS Brand
SCALABLE: Scalable From 5.22 To 78.3 kWh
Product Description
Discover how our comprehensive solutions empower your journey.
Nominal Voltage:51.2 Vdc
Nominal Capacity:102 Ah
Charge Power:2.56kW
Cell Technology: LiFePO₄ ,Lithium Iron Phosphate
DischargePower:5.12 kW
Short Circuit Current:350A
Display:Color touchscreen
Weight (kg):47.3 kg
Operating Temperature:Charge: 0~55°C / Discharge: -20°C ~ 55°C
Operating / Storage Humidity:≤95% RH
Max Operating Altitude:≤2000m
Battery Energy:5.22 kWh
Charge Current:50A
Discharge Current:100A
IP Rating:IP20
Communication:CAN, RS485, RS232
Dimension (WxDxH mm):440x 138x 600 mm

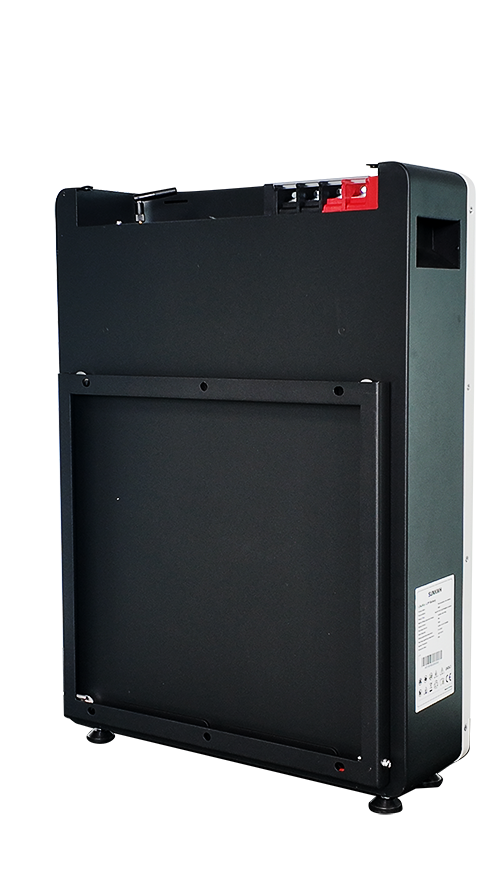

Installation:Floor Stand or Wall Mount
Scalability:Max 15 batteries in parallel
Cycle Life:6000 Cycles @ 80% DoD /25°C/0.5C, 60% EOL
Certificates:IEC 62619, IEC 61000, IEC 62040, UN38.3
Product Ordering Part:SUN-5.22K Battery(Cable / wall mount included)
